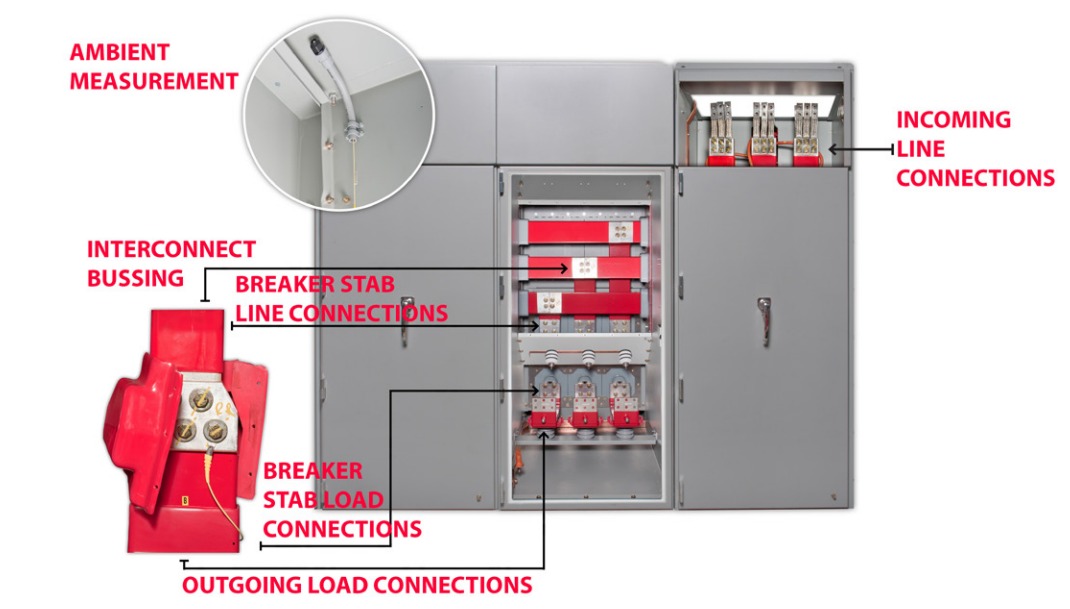

Thermal Monitoring provides those working with electrical equipment the capability of a direct-connect, real-time method of temperature monitoring in inaccessible locations. All while providing for the maximum safety and protection of personnel and equipment. The unique probe design secures to a bolted connection point without interfering with most standard construction and insulating practices. Once mounted on bus bars, splices, circuit breaker stabs or field terminations; temperatures are logged in real-time and internally stored. If an abnormality is identified, a quick remedial effort could save costly equipment damage and process downtime

Switchgear Thermal Monitoring System

  1. Superior to Periodic Testing
  2. Electrically Non-Conductive Optical Fiber
  3. Monitor Inaccessible Locations
  4. Absolute Temperature Reading
  5. Install in any Manufacturer's Equipment
