Description

1. Digital time switch with weekly program
2. 2 channels
3. Programming by app possible
4. Safe transfer via optional Bluetooth Low Energy OBELISK top3
5. Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
6. 100 % compatible with top2
7. DuoFix spring terminals
8. For 2 conductors each
9. Wire or strand (with or without wire end sleeve)
10. Wire diameter: 0.5 - 2.5 mm²
11. Button for releasing plug-in connection
12. Text-oriented user guidance in display
13. Preset date and time
14. fully operable without mains connection
15. 56 memory locations
16. Interface for OBELISK top2 memory card (PC programming)
17. 2. insertable switching program
18. Copying programs
19. Storing programs
20. 10 year power reserve (lithium battery)
21. Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
22. ON-OFF switching times
23. Switching preselection
24. Permanent switching ON/OFF
25. Integrated operating hour counter
26. Reset option
27. Service function for monitoring maintenance intervals
28. Holiday program
29. Display back light (can be turned off)
30. Permanent switching ON/OFF
31. PIN coding
32. Automatic summer/winter time changeover
33. can be deactivated
34. Date rule options are already stored for Europe, the USA and other countries
35. own date rule options or changeover around set dates are available

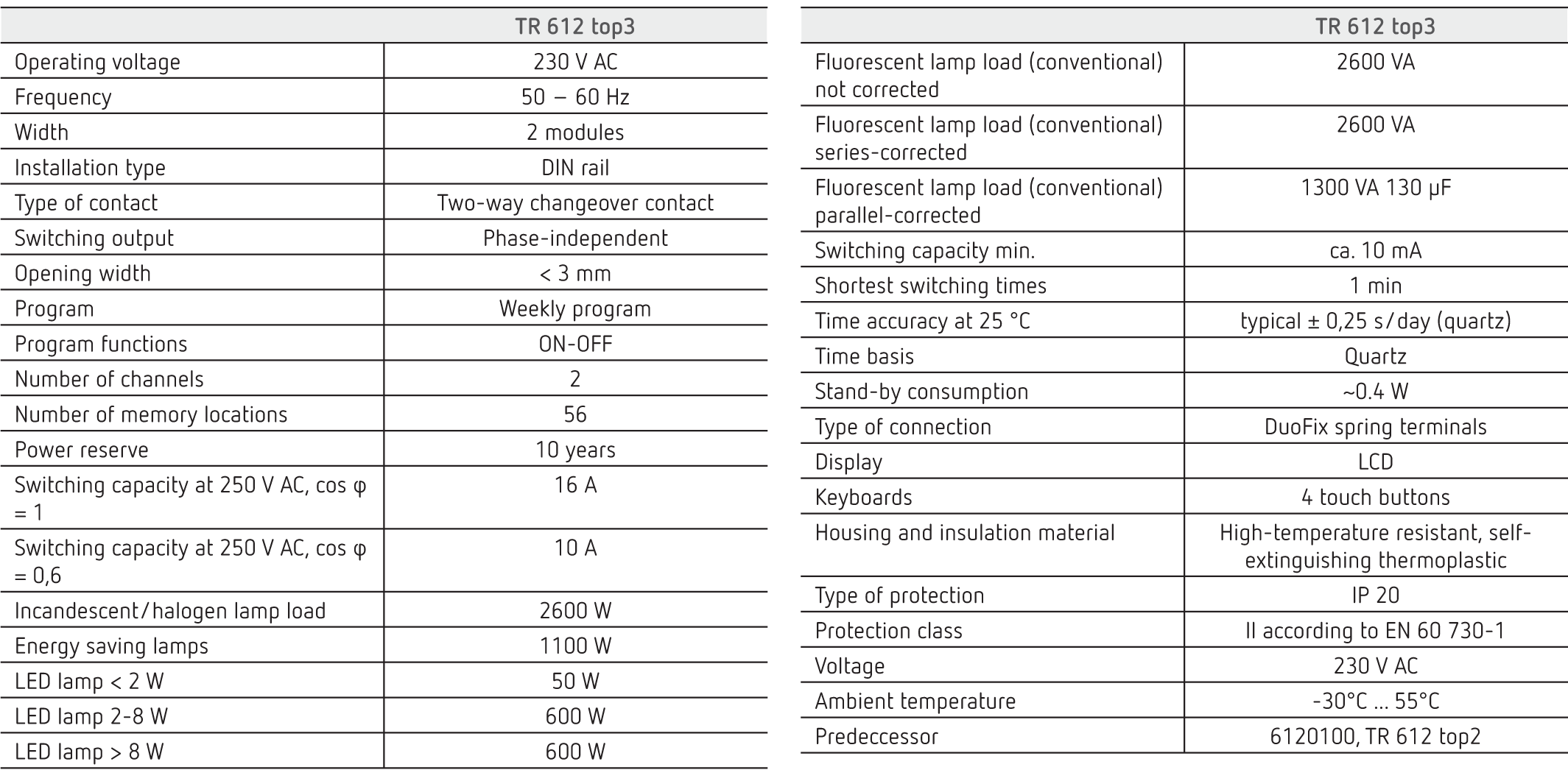

Technical Data

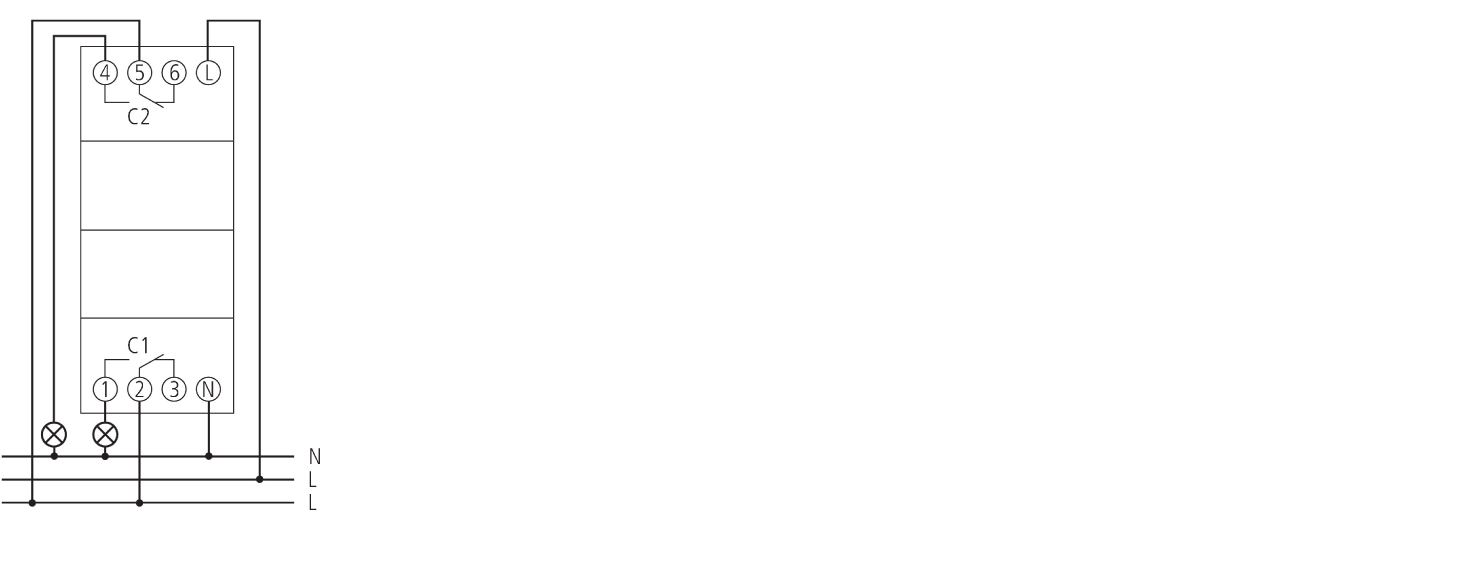

Connection Example

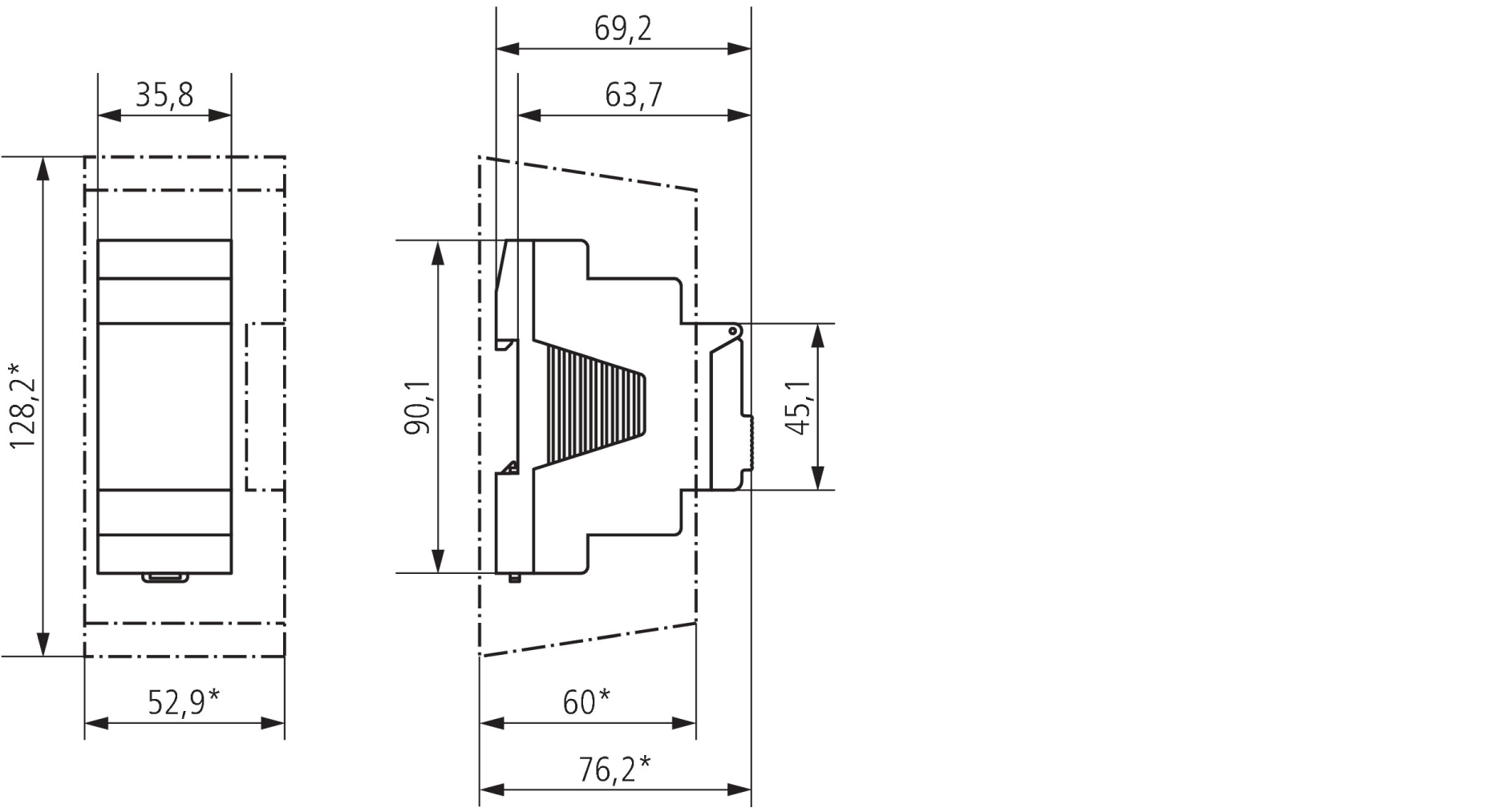

Scale Drawings

Accessories
