TKL Cast Resin
The compact cast resin busbar TKL is designed for connections in AC & DC low and medium voltage distribution applications. For 50 or 60 Hz AC applications the voltage range is up to 24 kV and rated current is up to 6.000 A for single line and up to 11.000 A for double line soluitons. For DC application the voltage range is up to 33 kV and rated current up to 18.000 A.
Technical Parameters
- Rated voltage – up to 24 kV
- Rated current – up to 6.000 A (single line) up to 11.000 A (double line)
- Frequency – 50Hz / 60Hz
- Ambient temperature – from -60 0C (-76°F) to +55 0C (+131°F)
- Short circuit current withstand – up to 312 kA (peak) up to 120 kA (3 sec)
- Installation application – indoor / outdoor
- Protection degree – IP68 as standard
- Type tested system

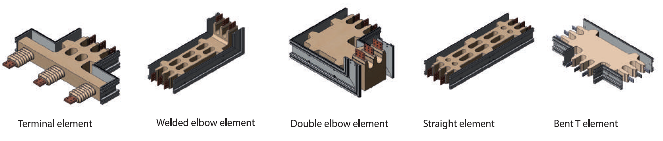

Design Parameters
- Conductor: Rectangular aluminum or copper bars
- Housing: Metal protection screen can be installed. In case of electrical connection of the screens induced current will reduce the magnetic field Touch safety
- Fixation System: Will be design and delivered in accordance with all specified mechanical and electrical parameters – is part of the delivery
