Description

1. Passive infra-red presence detector for flush-mounted ceiling installation
2. Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 3 m
3. 1 channel light (Relay, 230 V)
4. Automatic presence- and brightness-dependent control for lighting
5. Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
6. Choice of fully or semi-automatic operation
7. Adjustable brightness switching value, teach-in function
8. Reduction of switch-off delay time in the event of short presence (brief-presence)
9. Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch
10. Pulse function for staircase light time switch
11. Switch-on delay and switch-off delay configurable
12. Sensitivity adjustable
13. Detection area can be limited using cover clip
14. Ready for immediate use due to factory preset
15. An optional remote control is required for changing the values and attitudes
16. Test mode for checking function and detection area
17. Ceiling installation in flush-mounted socket
18. Ceiling installation also possible with surface-mounted frame
19. User remote control theSenda S, service remote control theSenda P, management remote control SendoPro (optional)

Technical Data

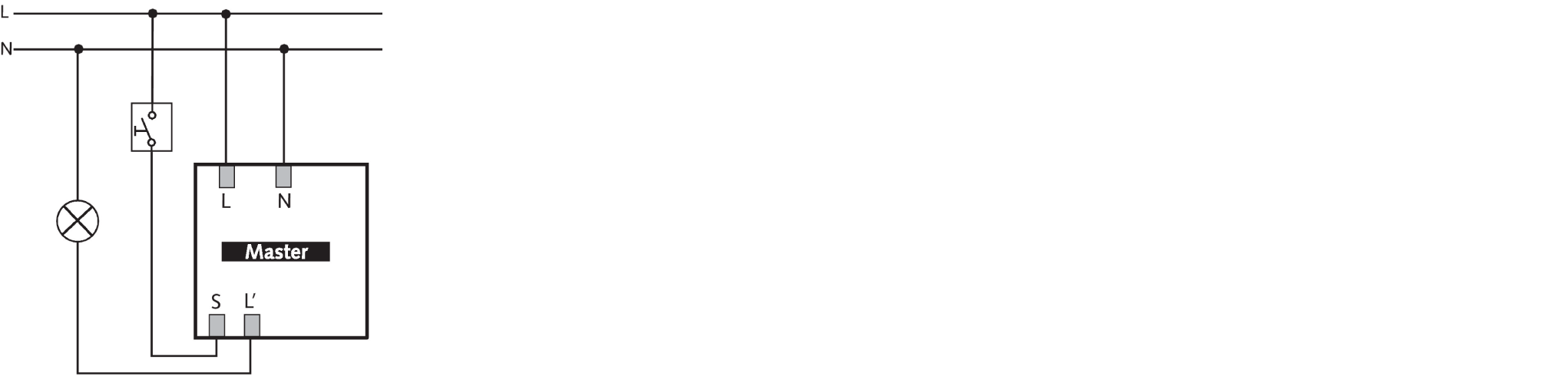

Connection Example

Detection Range for Planning Applications

Detection Range According to Sensnorm IEC 63180

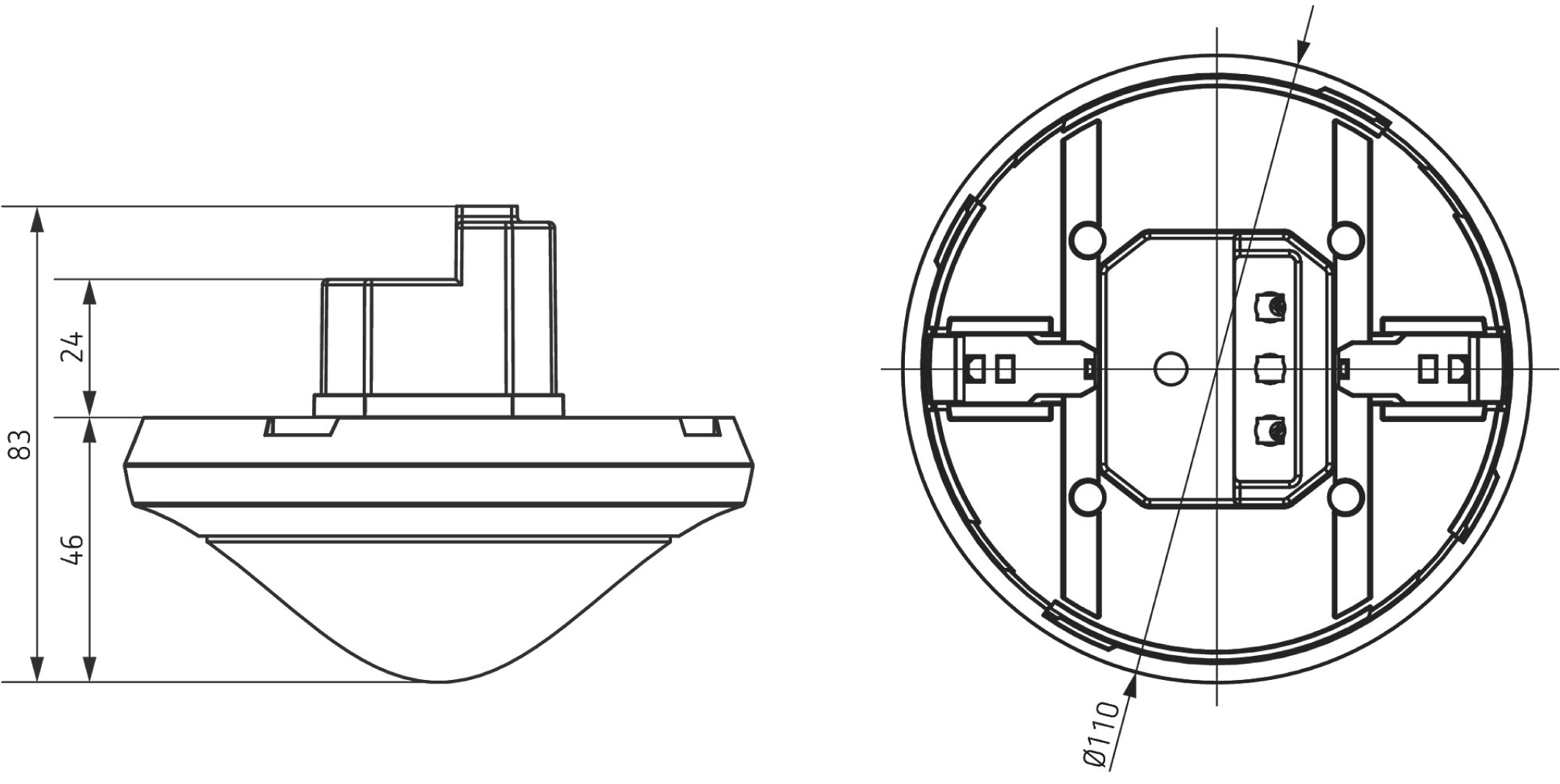

Scale Drawings

Accessories
