Description

1. Passive infra-red presence detector for flush-mounted ceiling installation
2. Square detection area 360°, 7 x 7 m, (49 m2) at mounting height 3 m
3. 1 channel light (Relay, 230 V)
4. Automatic presence- and brightness-dependent control for lighting
5. Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
6. Choice of fully or semi-automatic operation
7. Adjustable brightness switching value, teach-in function
8. Self-learning time delay
9. Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch
10. Pulse function for staircase light time switch
11. Ready for immediate use due to factory preset
12. Exceptionally easy configuration of the energy-saving behaviour with the new «eco plus» function
13. Test mode for checking function and detection area
14. Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other
15. Ceiling installation in flush-mounted socket
16. Ceiling installation also possible with surface-mounted frame
17. User remote control theSenda S, management remote control SendoPro (optional)
18. * According to warranty terms and conditions, see www.theben.de/en/ guarantee

Technical Data

Connection Example

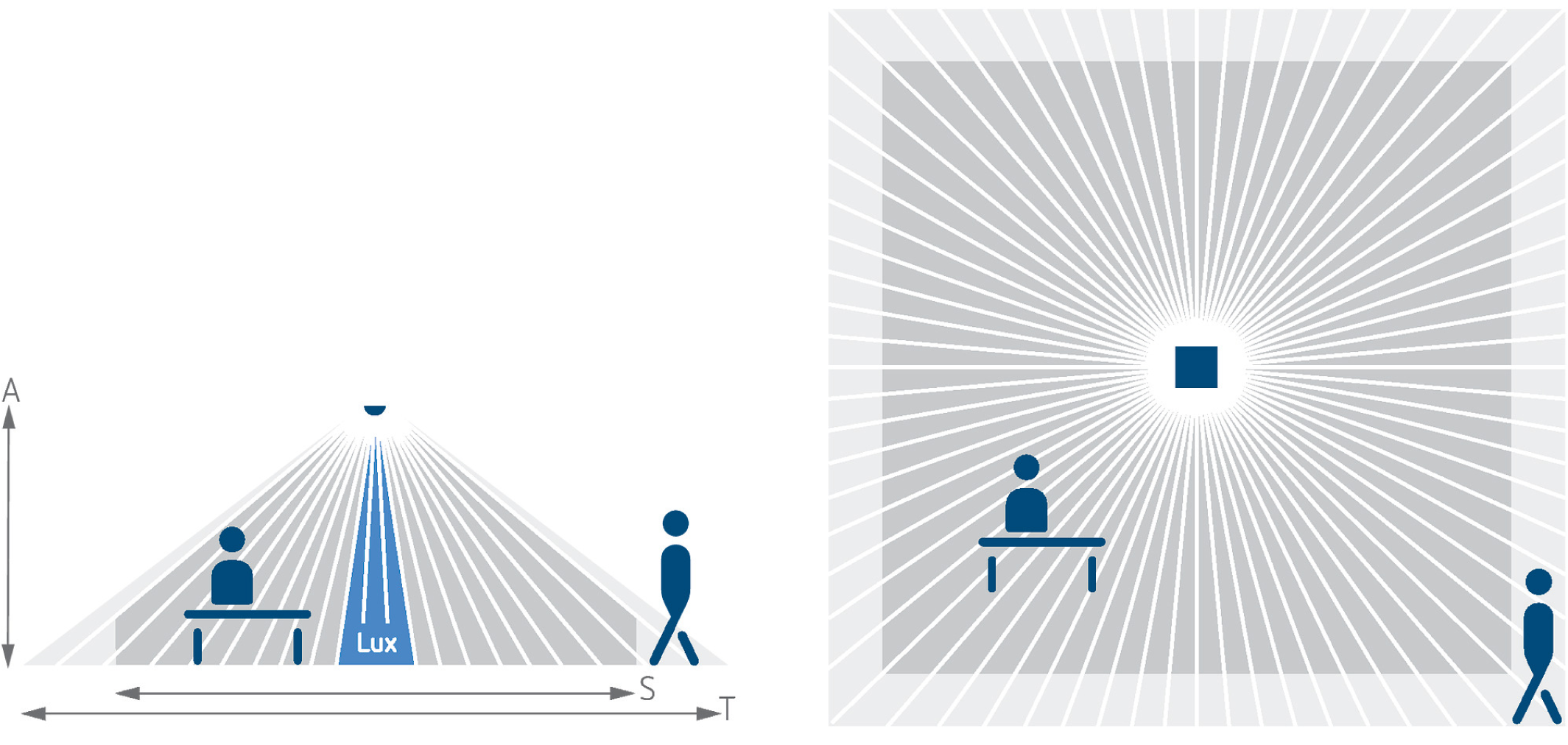

Detection Range for planning Applications

Detection Range for planning Applications

Detection Range According to Sensnorm IEC 63180

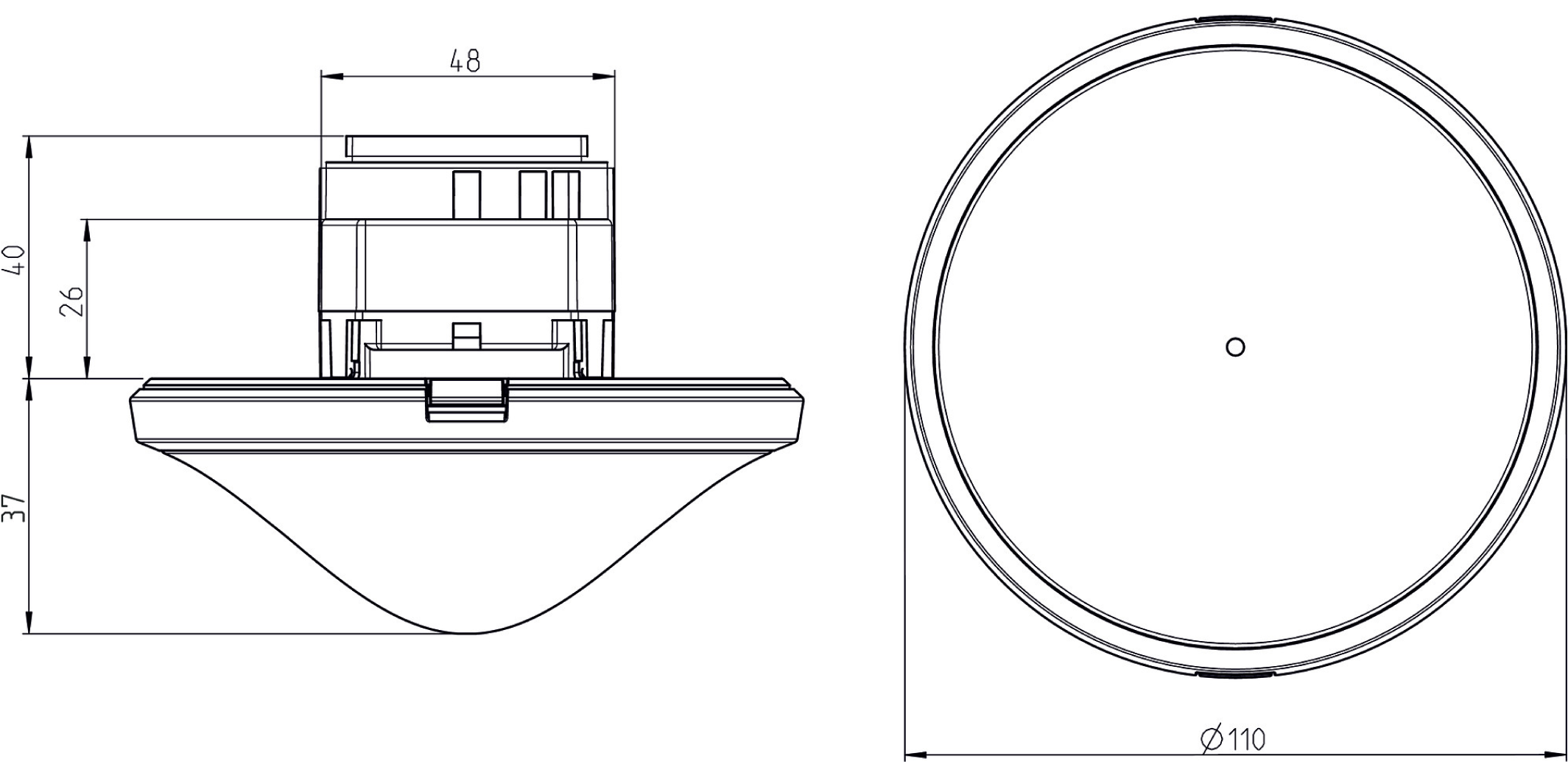

Scale Drawings

Accessories
