Description

1. Passive infra-red motion detector
2. For outdoor use
3. For installation on walls and ceilings
4. 360° detection angle
5. Sensor head can be turned by ± 90° horizontally, by 45° downwardsand by 90° upwards
6. Adjustable brightness switching value and switch-off delay
7. Sensitivity can be reduced to limit detection area
8. Area limit via lens attachment
9. Mixed light measurement suitable for the control of fluorescent,incandescent, halogen lamps and LEDs
10. Zero-cross switching for relay-saving switching and high lamp loads
11. Teach-in of current brightness value possible
12. Pulse function
13. Test function for checking detection area
14. Installation on flush-mounted socket possible (60 mm)
15. Single-handed plug-in installatio
16. Instant start-up possible via factory prese
17. Controls are place protected
18. Terminal for protective earth conductor
19. Corner angle included in delivery

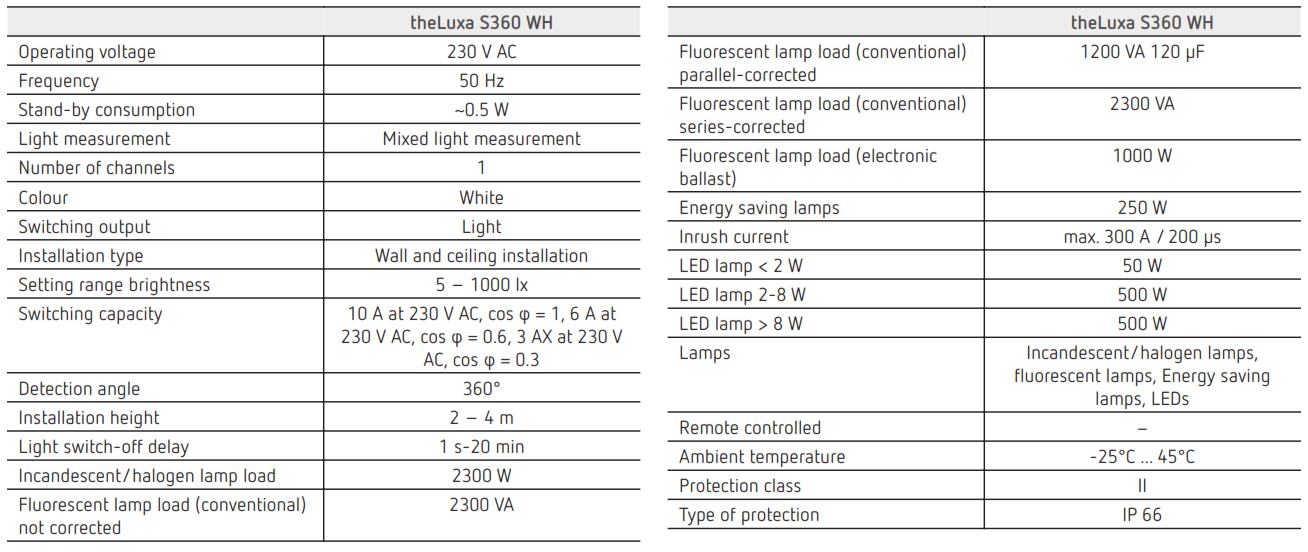

Technical Data
