Description

1. Passive infra-red motion detector
2. 180° detection angle
3. For outdoor use
4. Additional creep under protection
5. Sensor head can be turned by ± 90° horizontally and by 30° downwards
6. Adjustable brightness switching value and switch-off delay
7. Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
8. Zero-cross switching for relay-saving switching and high lamp loads
9. Teach-in of current brightness value possible
10. Pulse function
11. Test function for checking detection area
12. Installation on flush-mounted socket possible (60 mm)
13. Single-handed plug-in installation
14. Instant start-up possible via factory preset
15. Controls are place protected
16. Terminal for protective earth conductor

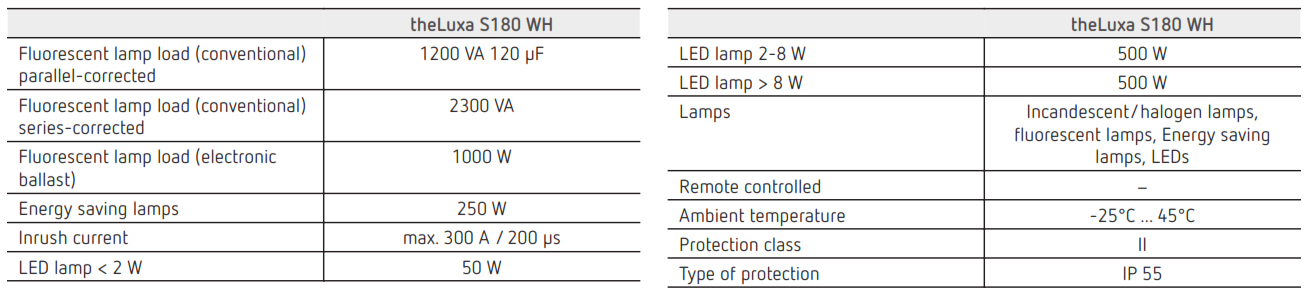

Technical Data
