GENERAL CHARACTERISTICS

1. high breaking capacity (AC 22 A - AC 23 A)
2. double break contacts
3. high electrical and mechanical endurance
4. resistant to damp heat
5. IP20 degree of protection
6. modular execution, basic mounting on 35 mm DIN rail and by screws, modular window 45mm.

OPERATING MECHANISM

1. Black (standard execution) or emergency direct handle padlockable in 0 position.
2. Handle with and without door interlock handle, black or emergency handle padlockable with up to three padlocks in 0 position.
3. IP 65 degree of protection.

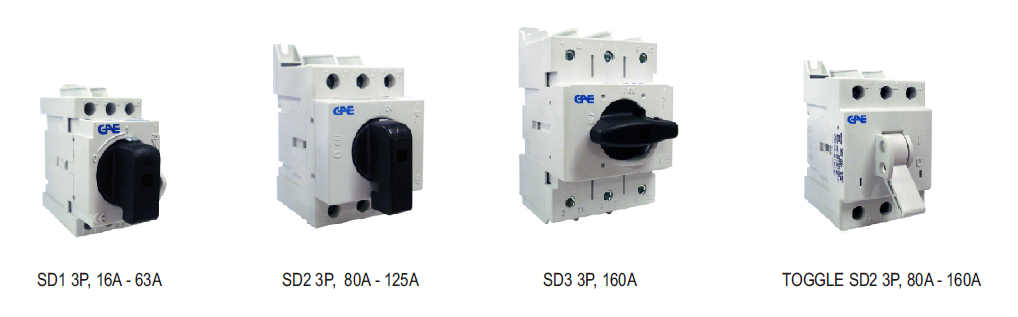

4. By toggle padlockable in 0 position (switch SD2).
