Description

1. Passive infrared presence detector, ceiling installation as supplied or flush mounting by means of removable springs/protection cap and enclosed mounting frame
2. 1 channel light (relay 230 V)
3. Circular detection area 360°, Ø 12 m (113 m) at 3 m mounting height
4. Extension of the detection area by parallel switching, a maximum of 8detectors can be connected in parallel
5. Networking with wall detector theMura Slave possible2
6. Connection option for push-button for manual switching
7. Operation as fully or semi-automatic possible
8. One directional brightness measurement (mixed light measurement)
9. Teach-in function, pulse function, test function, staircase lighting function
10. Ready for operation immediately due to factory presetting
11. Changes of values and settings are possible with potentiometers and with one of these optional remote controls:
12. App/universal remote control theSenda B- Service remote control theSenda P
13. Optional user remote control for manual override theSenda S/theSendaB
14. Restriction of the detection range possible
15. Also suitable for outdoor applications, by changing the installation location the detection range is reduced to Ø 8 m

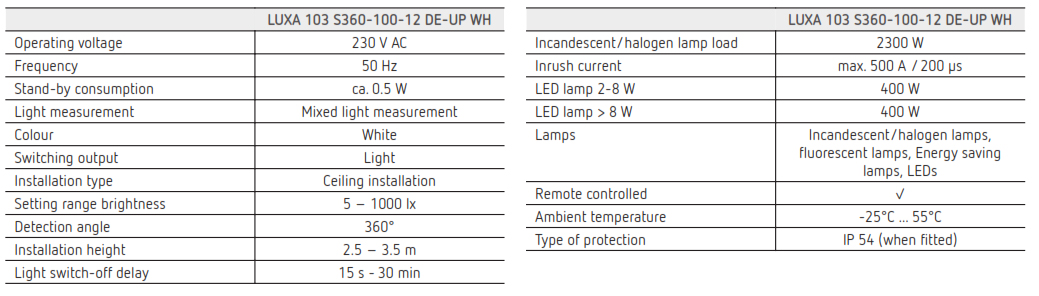

Technical Data
