Description

1. Twilight switch with integrated weekly timer
2. External light sensor included in delivery
3. 1 channel
4. External input
5. Time synchronisation option via connection of an external DCF or GPS antenna
6. 3 special programs (small annual program)
7. 84 memory locations
8. Programming by app possible
9. Safe transfer via optional Bluetooth Low Energy OBELISK top3
10. Maximum manipulation security, time switch programs can only be transferred from the app to the device when the Bluetooth OBELISKtop3 is plugged into the device
11. Switching brightness digitally adjustable
12. Adjustable On and Off switching delay
13. Switching brightness and switching delay can be set separately for switching On and Off
14. Onscreen display of channel and switching status as well as current lux value
15. DuoFix spring terminals
16. Zero-cross switching for relay-saving switching and high lamp loads
17. Up to 4 sensors can be attached
18. Up to 10 devices can be connected to a digital sensor
19. Interface for OBELISK top2 memory card (PC programming)
20. Extended brightness range
21. Permanent switching ON/OFF
22. Test function
23. Switching preselection
24. Display back light (can be turned off)
25. PIN coding
26. Operating hour counter

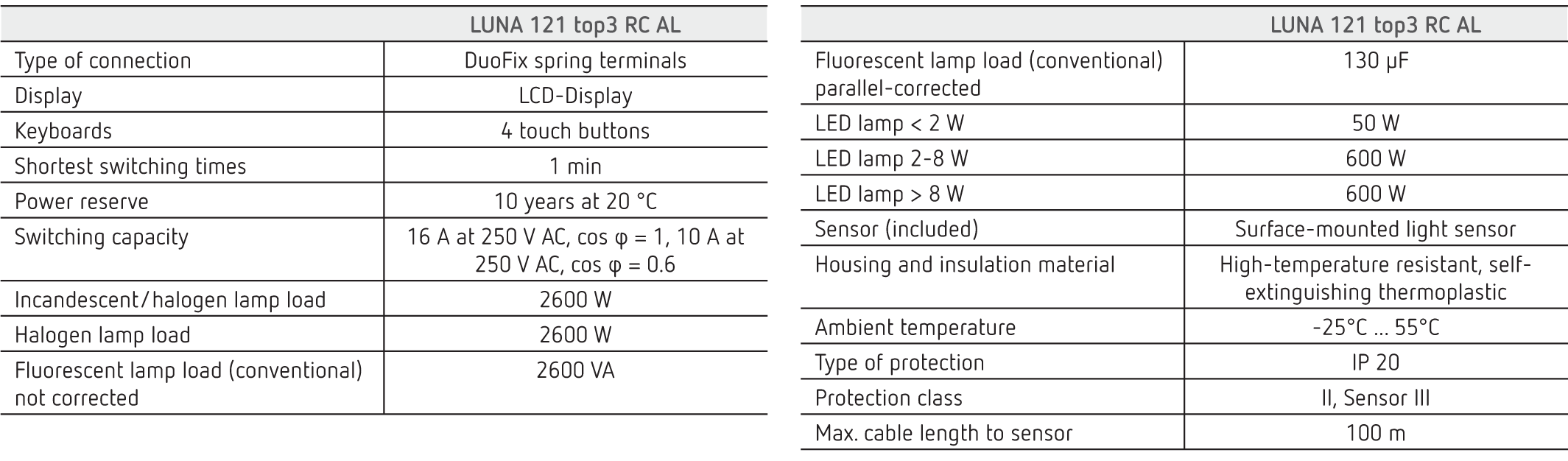

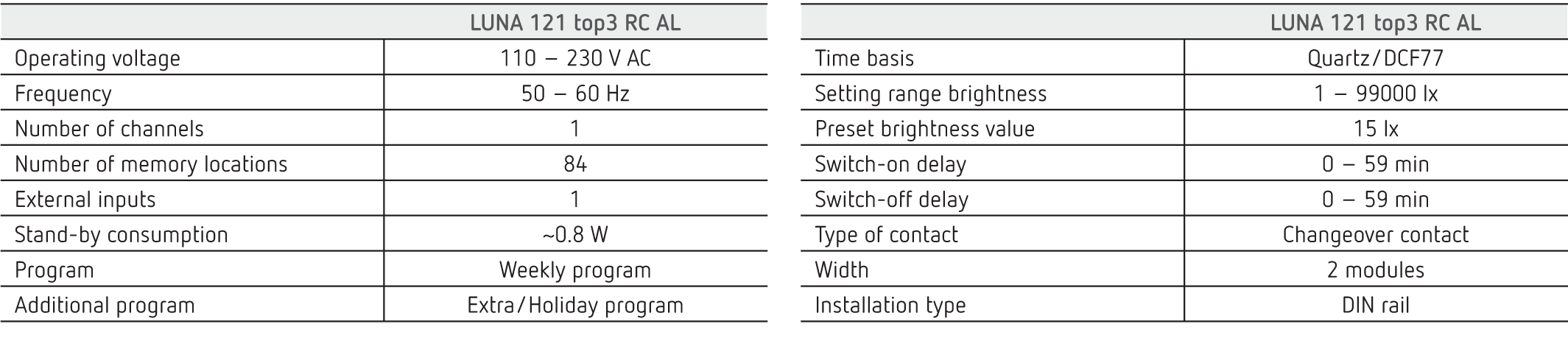

Technical Data

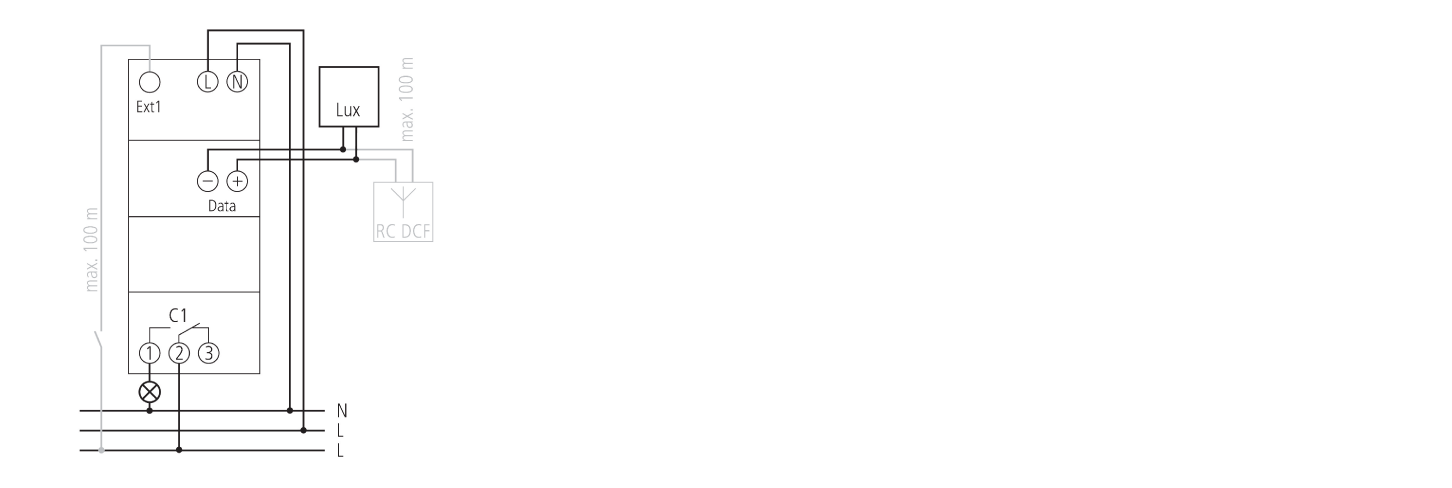

Connection Example

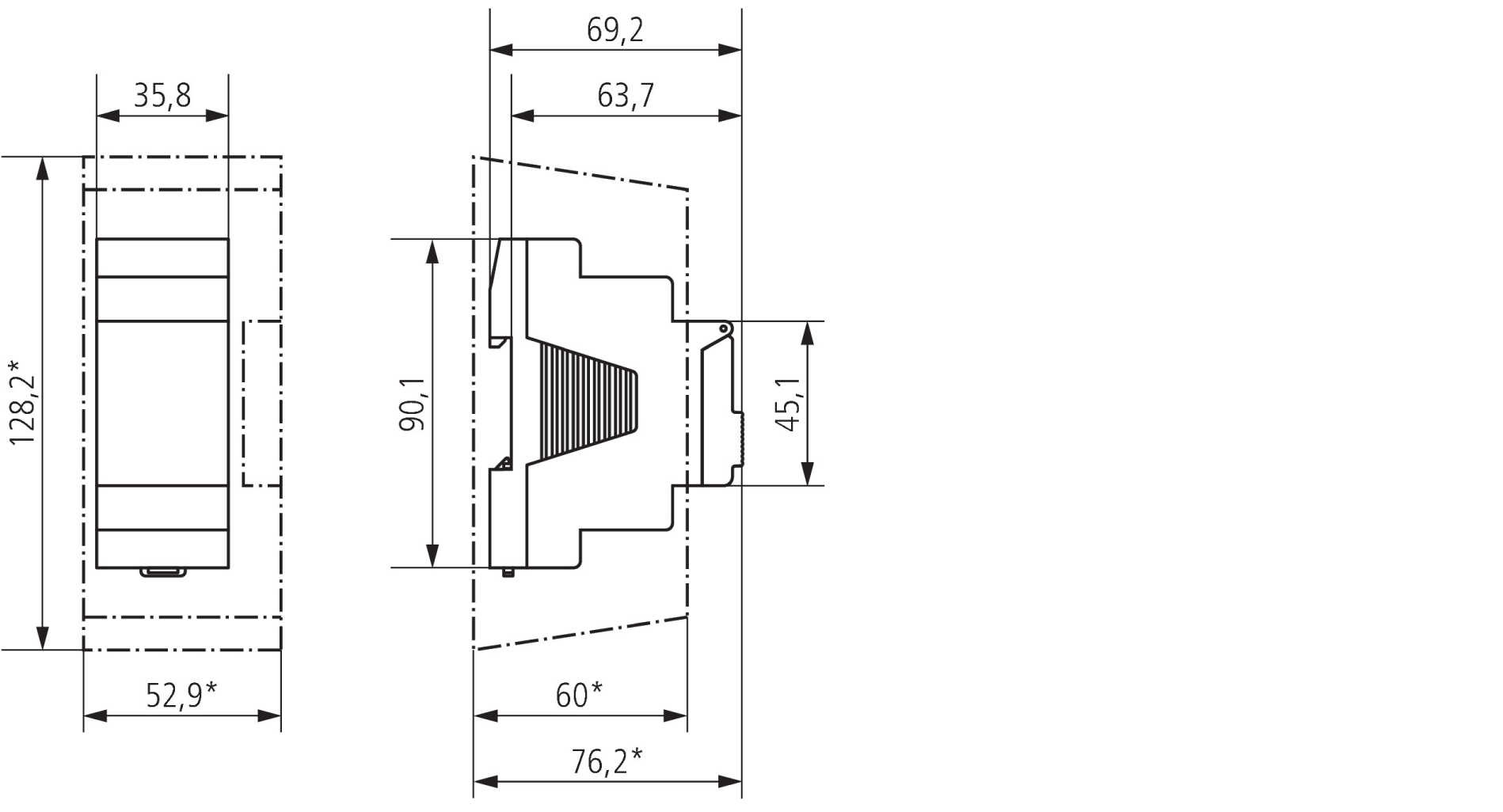

Scale Drawings

Accessories
