GENERAL CHARACTERISTICS

1. rated insulation voltage 1000V AC and 1500V DC
2. 3 poles available
3. high breaking capacity (AC-22, AC-23, IEC 60947-3)
4. high electrical and mechanical endurance
5. double break contacts
6. self cleaning contacts
7. contact position positively indicated by the handle
8. visibility of fixed and moving contacts by means of windows
9. independent manual operation
10. neutral contact makes earlier and opens later than the phase contacts
11. solid neutral version available
12. neutral at full current until 1250 A, standard, 1600 A ÷ 3150 A on request
13. suitable protection to prevent accidental touching of liveparts
14. casing in self-extinguishing (V0-UL94), low hygroscopic and high mechanical resistance isolating material
15. resistant to damp heat (IEC 6068-2)
16. wide range of accessories
17. rotary front operation by means of: external double insulated handle with door-interlock in ON position,
18. IP65 degree of protection. Padlockable with three padlocks in OFF position
19. direct handle (padlockable in OFF position on request).

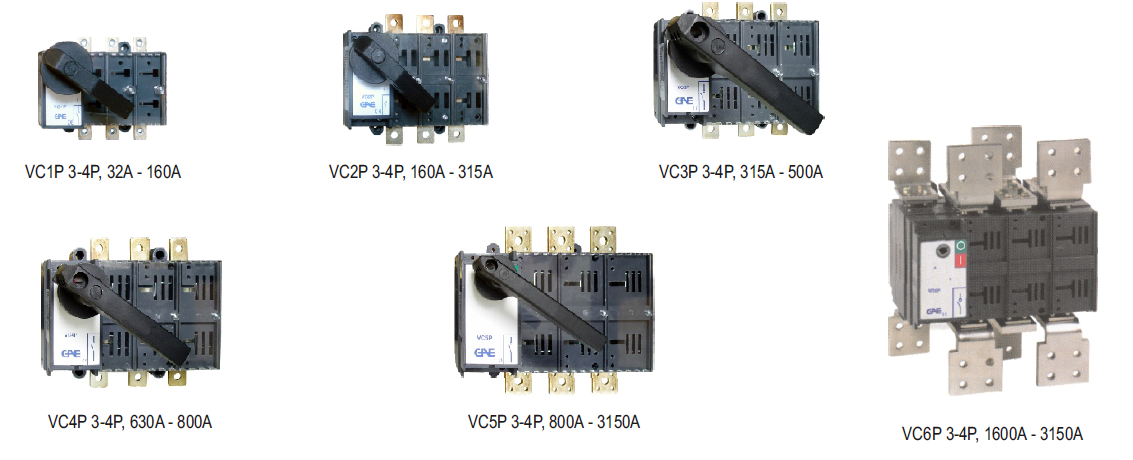

RANGE COMPOSITION

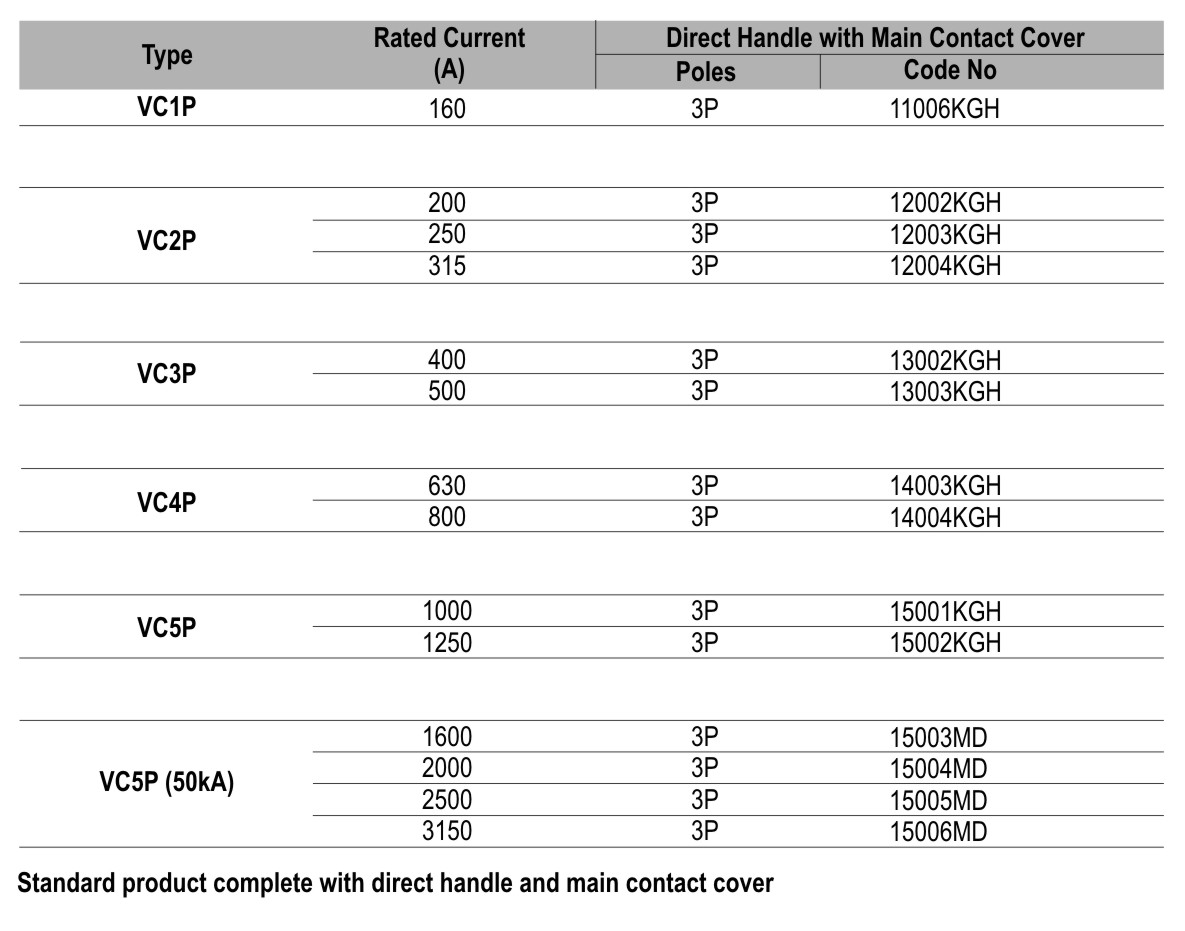

LOAD BREAKER SWITCH 3P

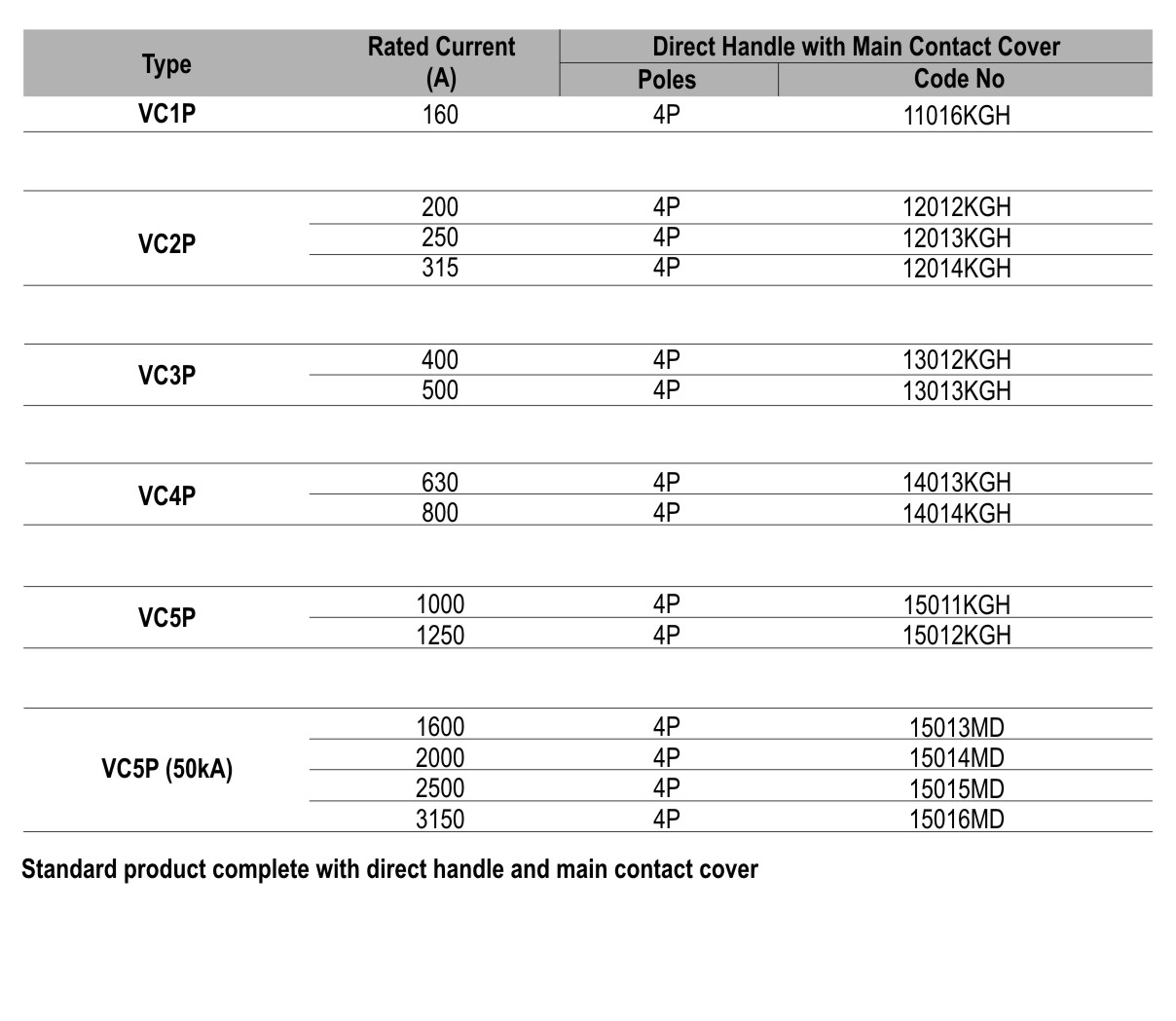

LOAD BREAKER SWITCH 4P
