GAE ETG 485 Converter RS485
GAE ETG 485 Converter RS485 is device which converts between MODBUS and Ethernet protocols and allow user to: Control and monitor serial devices in the plant over the Internet or local area network with server mode. Control and monitor devices, that support Ethernet-based protocols, over the serial interface with client mode.
KEY BENEFITS
- RJ45 Connector
- Ability to Configure over USB
- Adjustable baud rate (300 .. 115200)
- Stop Bit and Parity Bit Adjustment
- Isolation; 1.5 kV RMS
- Ethernet 10/100 Base-TX
- Supported Protocols:
- Modbus TCP
- Modbus RTU over TCP
- Modbus ASCII over TCP
- Modbus RTU
- Modbus ASCII
- Server or Client selectable (Bidirectional)
- LED's Indicator

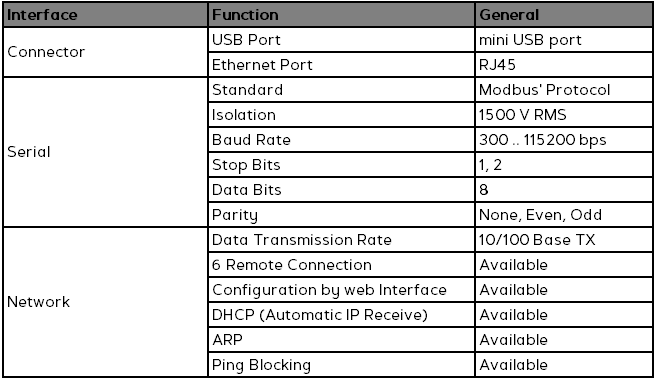

SPECIFICATION

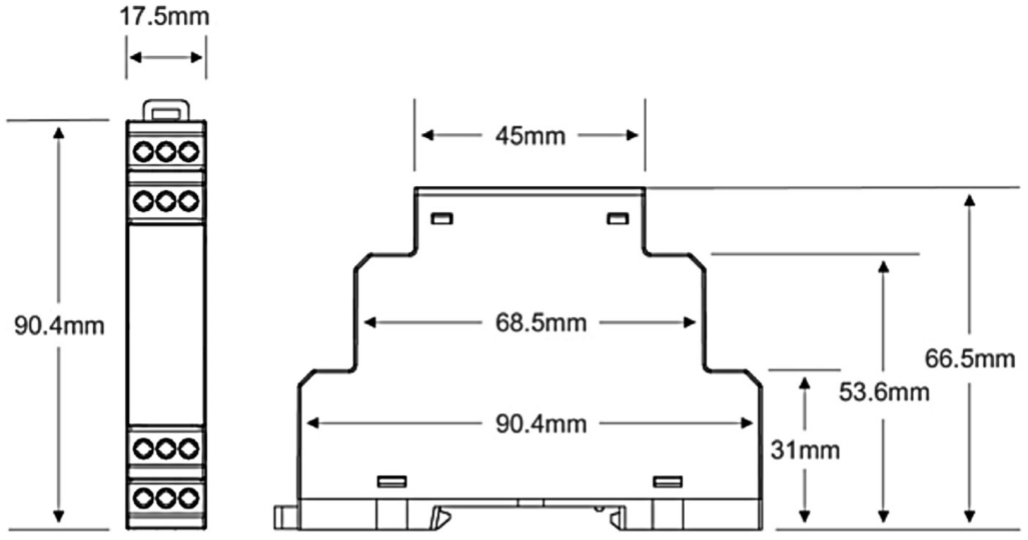

DIMENSION
