Double Frequency Meter
All Instruments comply with IEC 60051 for performance, accuracy and overloads Case and frame using material thermoplastic (ABS V0) white, with IP50 Ingress Protection.
| Measuring Range Rated voltage Accuracy Class Display Burden Operating temperature Storage temperature Relative humidity Cable Size Weight |

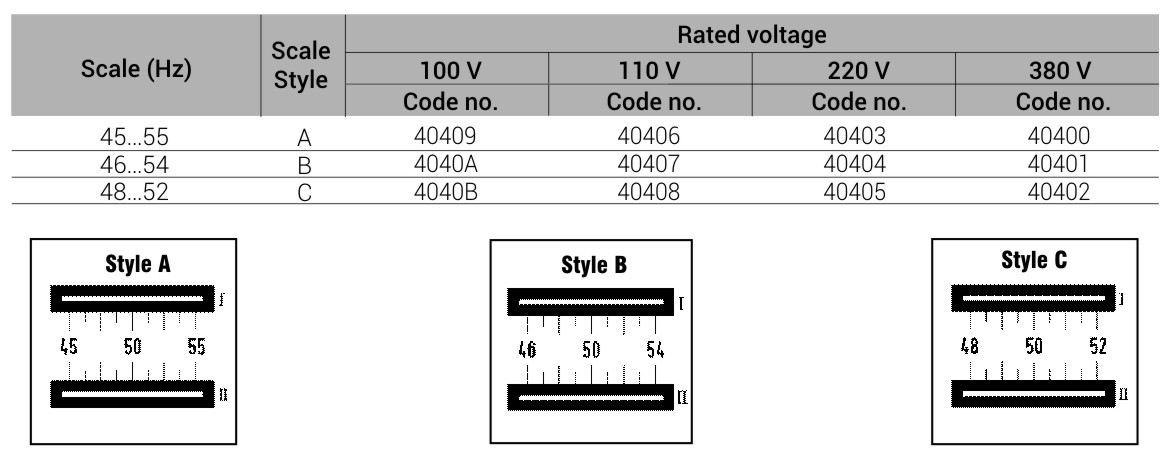

45…55Hz, 46…54Hz, 48…52Hz 380V+20%, 220V+20%, 110V+20%, 100V+ 20% 3 2x9 dots Bar Graph LED, Red 2x5VA/4W(max) 0°C…+50°C -10°C…+70°C 95% (non condensing) max 4mm2 403gr |
