Description

1. CO2 sensor
2. Suitable for conference and meeting rooms, offices, schools/nurseries, passive and low-energy housing.
3. For fan control
4. Warning display for CO2 concentration (lights)
5. Power unit optionally available. Power unit is suitable for flush mounted installation
6. Simple upgrade of uncontrolled ventilation systems possible
7. 2 switch outputs CO2 controlled for 2 stage control, with manual and automatic mode as well as display of switching status
8. 3 x 0–10 V outputs for CO2, temperature and relative humidity

Technical Data

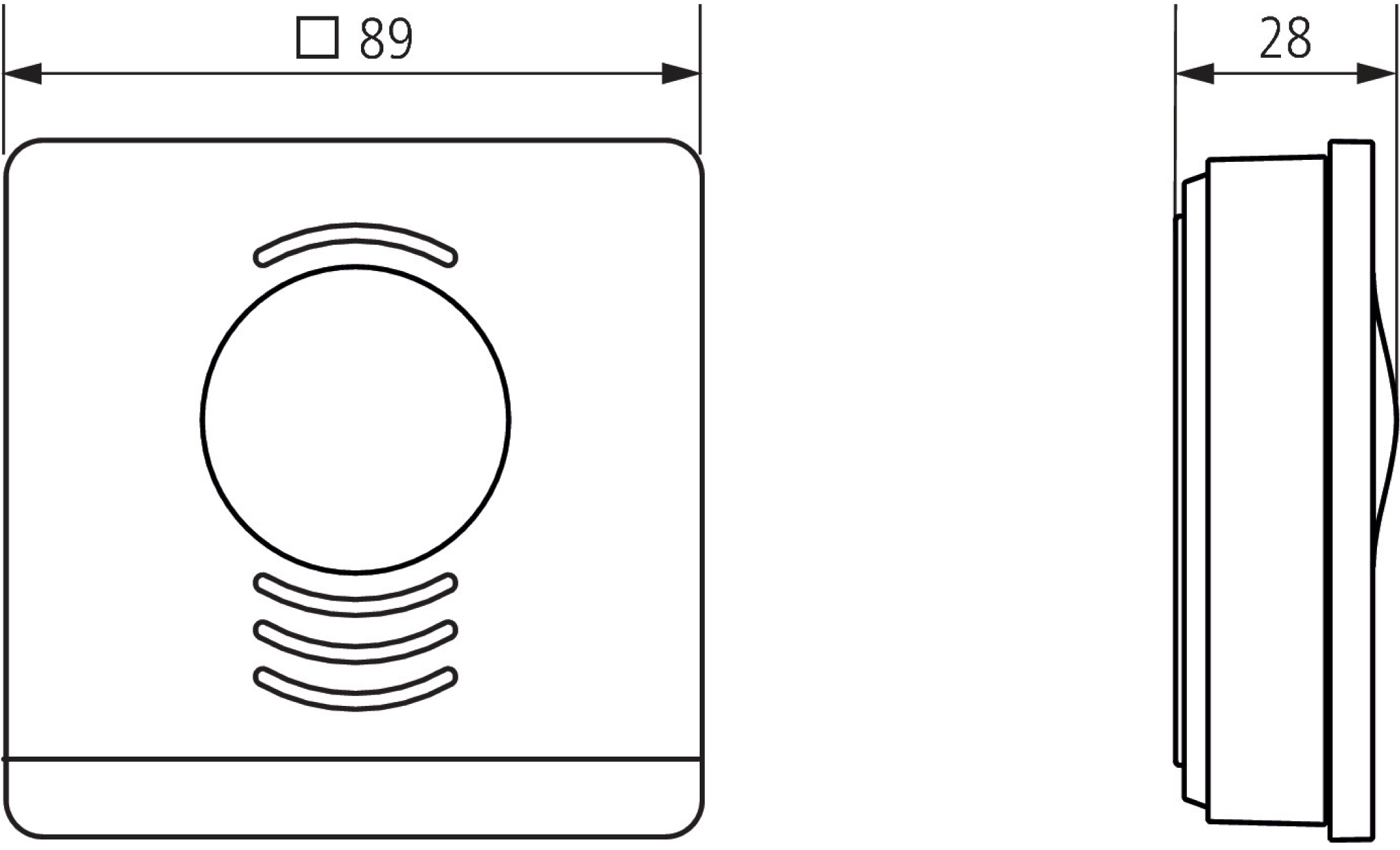

Scale Drawings

Accessories

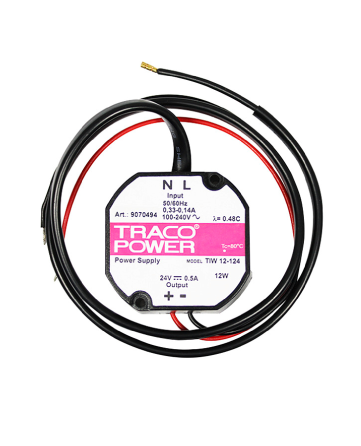

Power unit CO2-sensor
Item no.: 9070494
