Ampere Meter
All instruments comply with IEC 60051 for performance, accuracy and overloads, Case and frame using material thermoplastic (ABS V0) white.
AC Ammeter
| Measuring Range | DIRECT CONNECTION: 0..10A, 0..25A, 0..40ACONNECTION WITH CT: …/5A, …/1A |
| Accuracy class | 1.5 |
| Scale Design | Overload scale i.e. upper scale value = 2x the measuring range |
| System | Moving iron strip core system with oil dumping |
| Frequency | 50...100Hz |
| Internal Consumption | 0.5VA |
| Frame Size | 96x96mm and 72x72mm |
| Weight | 210gr (96x96mm) and 150gr (72x72) |

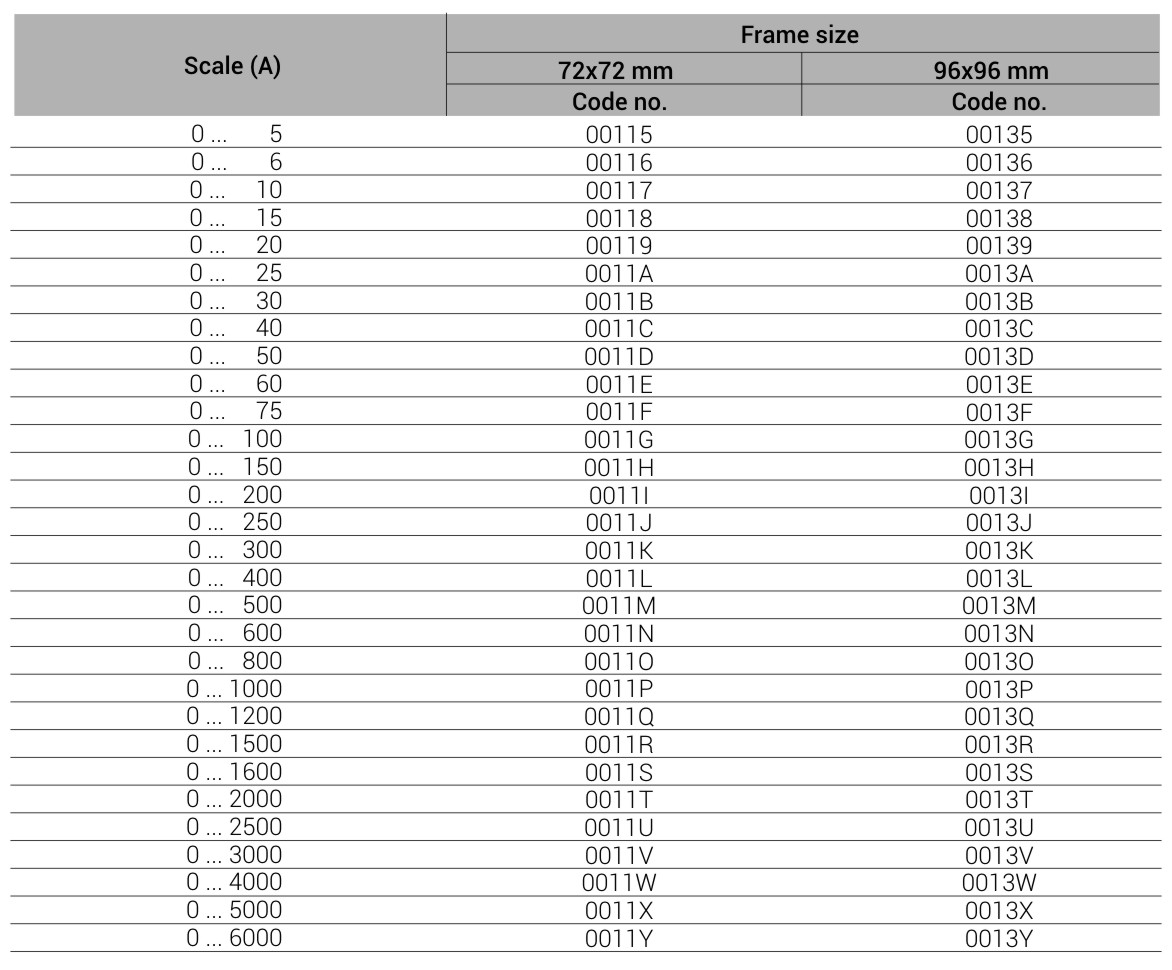

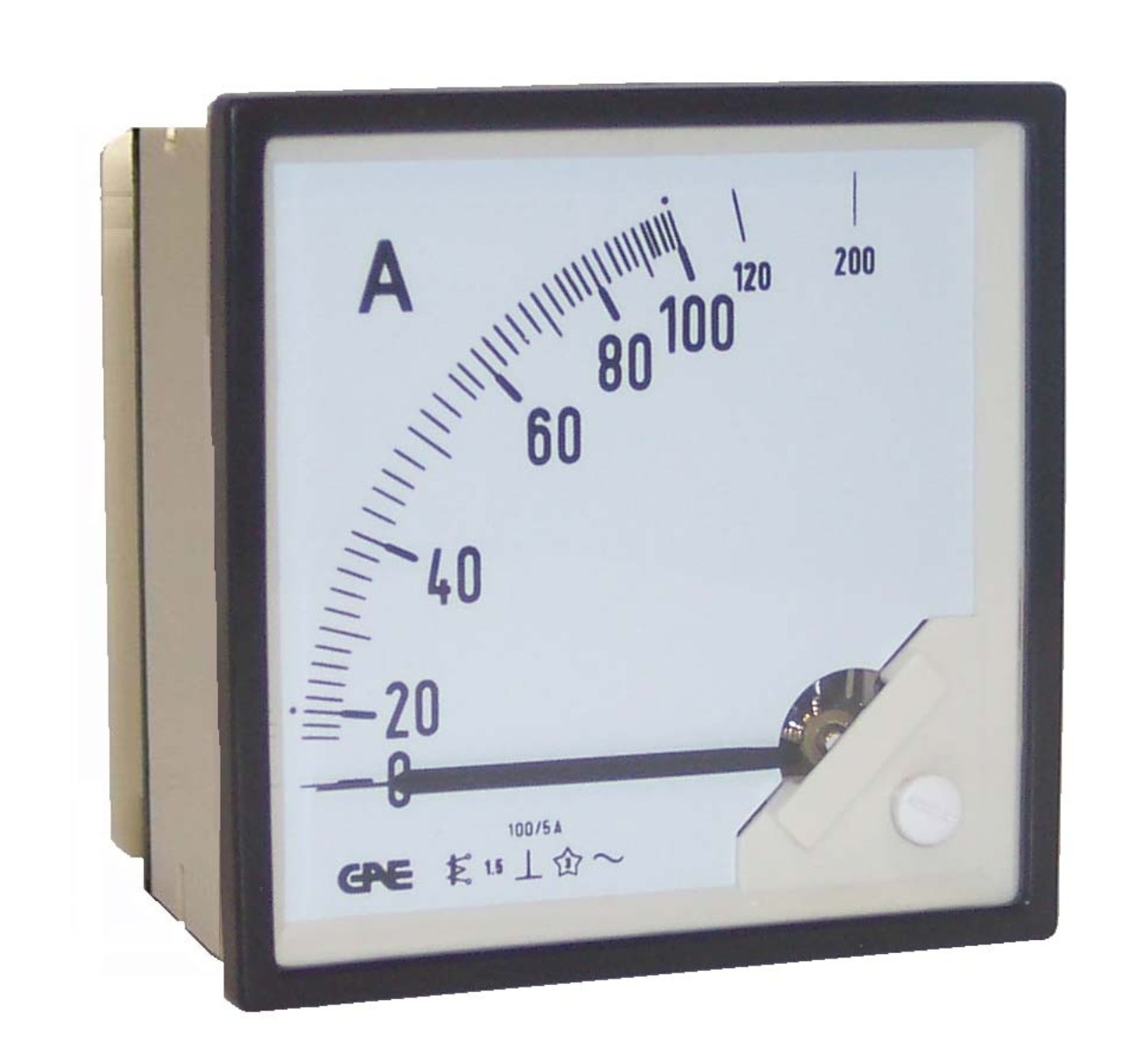

AC Ammeter with CT .../5A, or 1A Special Order

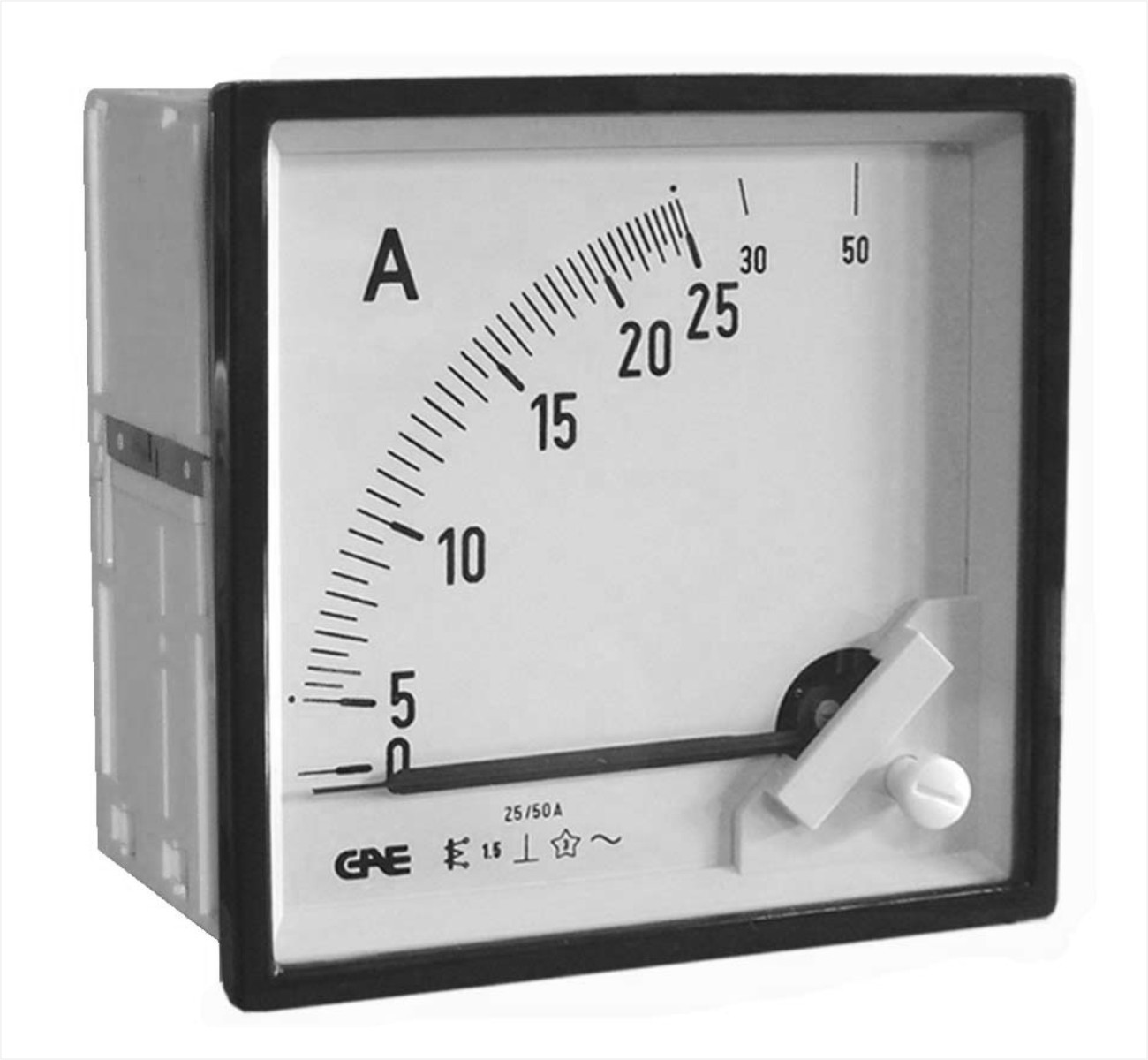

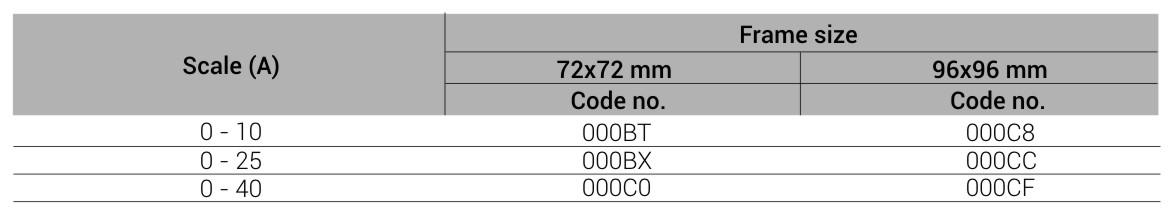

AC Ammeter Direct Connection

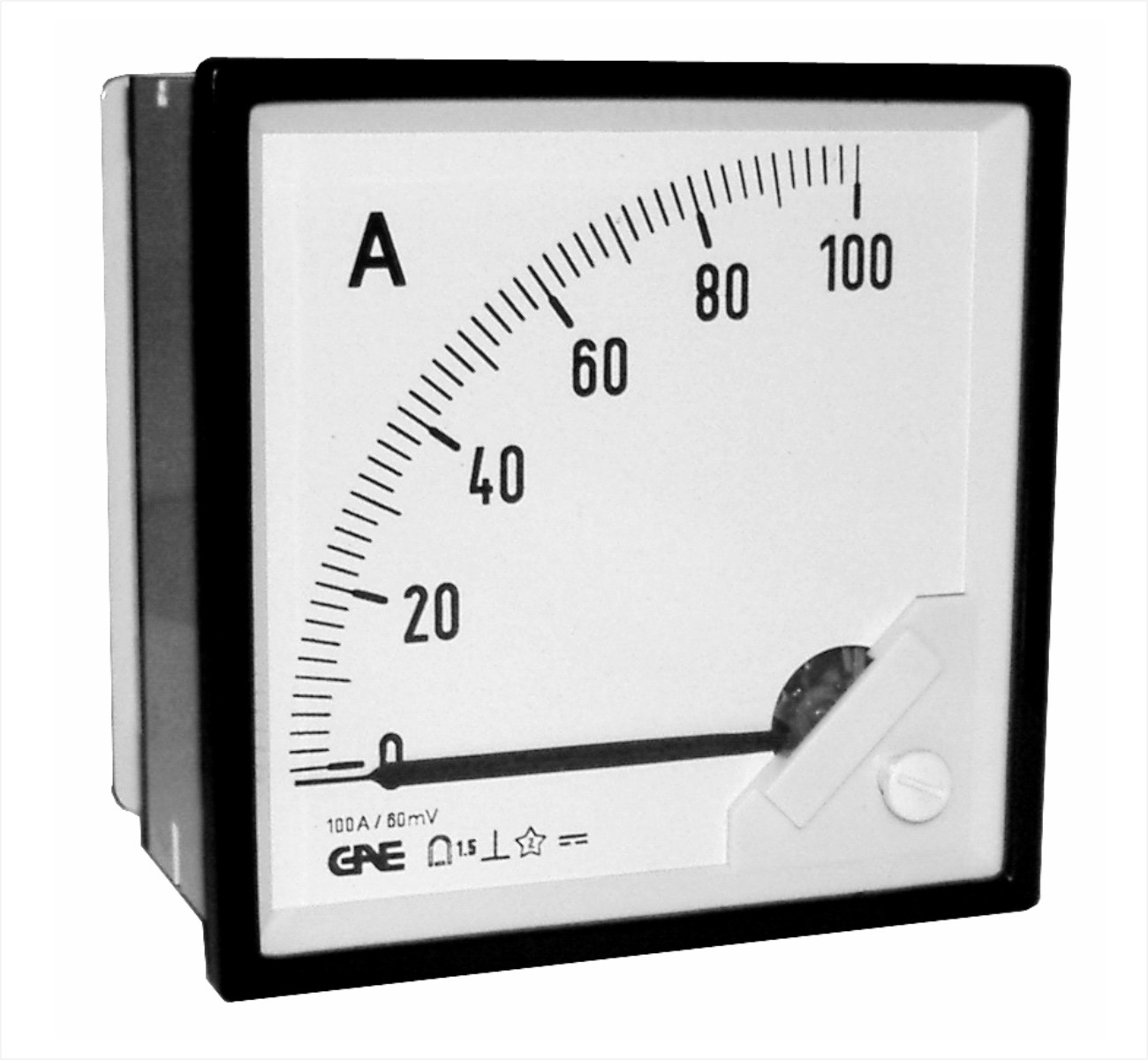

DC Ammeter
| Measuring | Using shunt … A/60mV (shunt is not included) |
| Accuracy | 1.5 |
| System | moving coil |
| Frame Size | 96x96mm and 72x72mm |
| Weight | 200gr |

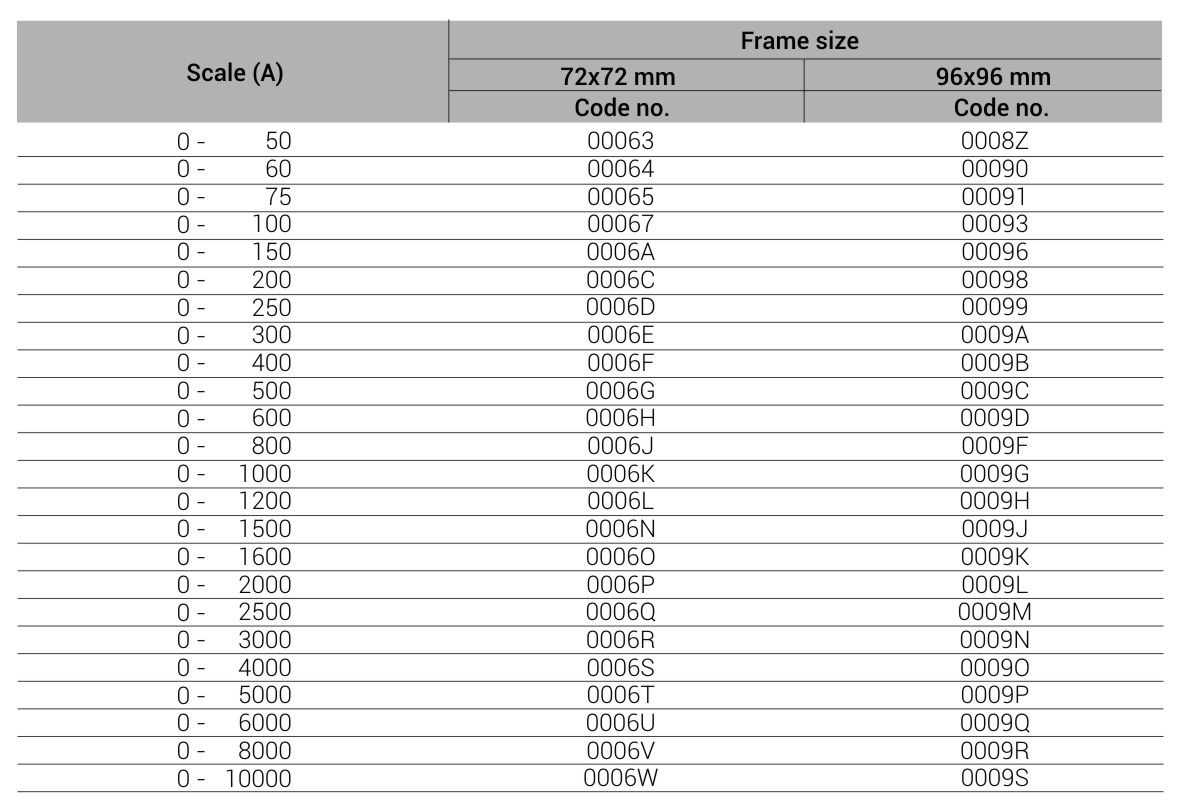

DC Ammeter
